6-10T/H Compost Fertilizer Production Trommel Vibrating Screen
Introduction
Trommel Vibrating Screen Adopting the principle of rolling conveying, the friction coefficient is small, the wear is light and the screen hole is not easy to be blocked.
Safe and reliable operation, high transmission efficiency, with a small power, low energy consumption.
Our Trommel Vibrating Screen can solve the issues such as blockage of the screening machine, low efficiency, wet materials, and high energy consumption. Cage trommel screening machine, because of its unique structural characteristics, completely and effectively solves the shortcomings of other types of screening equipment, and is the first choice for fertilizer production.
Self-cleaning cage trommel screening machine rotates reasonably the central separation drum of the equipment through the gearbox type deceleration system. During operation, the material enters the cylinder net from the upper end of the central separation cylinder. During the rotation of the separation cylinder, the fine material is separated from the top to the bottom through the screen interval composed of annular flat steel, and the coarse material is separated from the lower end of the separation cylinder discharged into the pulverizer.
Application of Trommel Vibrating Screen
Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Home Use, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other
Parameters of Trommel Vibrating Screen
| model |
Power
kw
|
Working speed rpm |
Capacity
T/H
|
| GS1X3 |
3 |
21 |
2-3 |
| GS1.2X4 |
4 |
18 |
3-5 |
| GS1.5X6 |
5.5 |
16 |
6-10 |
| GS1.8X7 |
11 |
13 |
12-15 |
| GS2.0X8 |
15 |
12 |
15-20 |

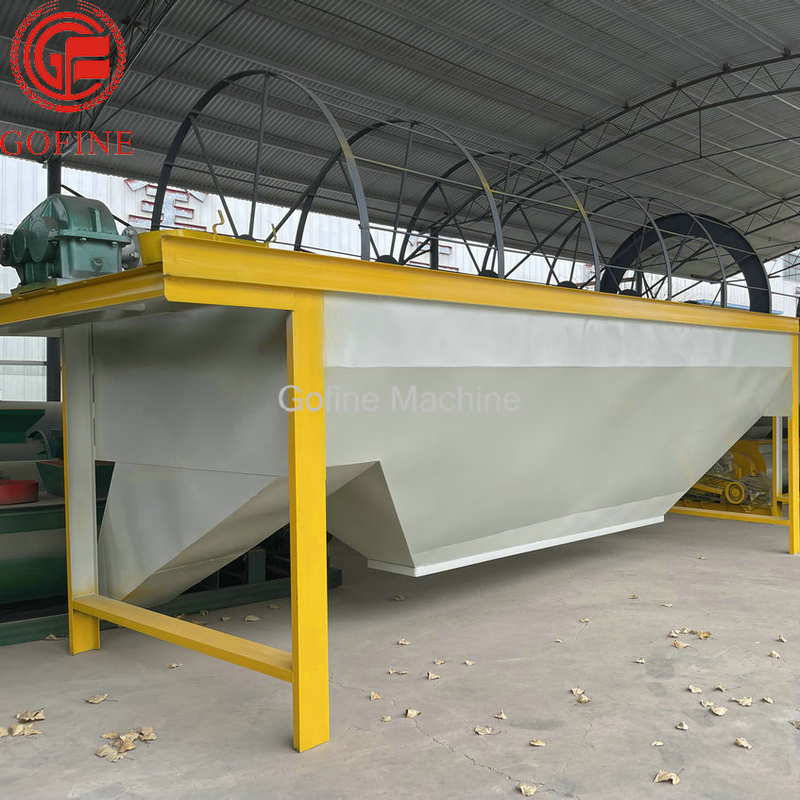

Pictures of Trommel Vibrating Screen
