Product Details
Place of Origin: Henan, China
Brand Name: Gofine
Certification: CE
Model Number: GS1.2X4
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negitionable
Packaging Details: plywood case
Delivery Time: 1-3Sets/15days
Payment Terms: L/C, Western Union, T/T, MoneyGram
Supply Ability: 25Sets/Month
Name: |
Heavy Duty Trommel Screen |
Application: |
Compound Fertilizer |
Power: |
4kw |
Working Speed: |
18rpm |
Capacity: |
3-5T/Hour |
Type: |
Mobile |
Name: |
Heavy Duty Trommel Screen |
Application: |
Compound Fertilizer |
Power: |
4kw |
Working Speed: |
18rpm |
Capacity: |
3-5T/Hour |
Type: |
Mobile |

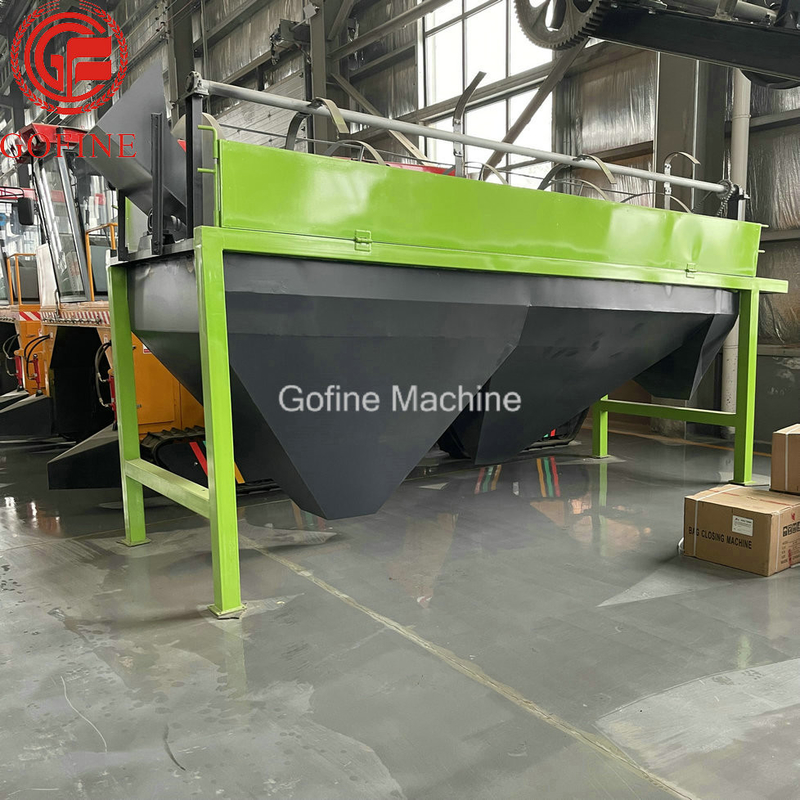

Mobile Compost Fertilizer Production Heavy Duty Trommel Screen 5T/H
Heavy Duty Trommel Screen is widely used for alluvial gold sieving and graded washing.It provides a simple, efficient and economical solution to upgrade a wide range of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing.
Introduction
Self-cleaning cage Heavy Duty Trommel Screen rotates reasonably the central separation drum of the equipment through the gearbox type deceleration system. During operation, the material enters the cylinder net from the upper end of the central separation cylinder. During the rotation of the separation cylinder, the fine material is separated from the top to the bottom through the screen interval composed of annular flat steel, and the coarse material is separated from the lower end of the separation cylinder discharged into the pulverizer.
During the separation process, through the relative movement of the screen cleaning mechanism and the screen body, the screen body is continuously "combed" by the screen cleaning mechanism, so that the screen body is always kept clean during the whole working process. , the screening efficiency will not be affected by the clogging of the screen holes. It is custom made according to different materials;
Parameters of Heavy Duty Trommel Screen
model |
Power kw |
Working speed rpm |
Capacity T/H |
GS1X3 | 3 | 21 | 2-3 |
GS1.2X4 | 4 | 18 | 3-5 |
GS1.5X6 | 5.5 | 16 | 6-10 |
GS1.8X7 | 11 | 13 | 12-15 |
GS2.0X8 | 15 | 12 | 15-20 |
Pictures
