Gold Sieving Mobile Trommel Screen Sand Trommel Drum Screener

Product Details

Place of Origin: Henan, China

Brand Name: Gofine

Certification: CE

Model Number: GS1.2X4

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negitionable

Packaging Details: plywood case

Delivery Time: 1-3Sets/15days

Payment Terms: L/C, Western Union, T/T, MoneyGram

Supply Ability: 25Sets/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                Gold Sieving Mobile Trommel Screen, Sand Mobile Trommel Screen, Sand Trommel Drum Screener


Name:	Mobile Trommel Screen	Application:	Gold Sieving
Power:	4kw	Working Speed:	18rpm
Capacity:	3-5TPH	Other Name:	Trommel Drum Screener

Name:	Mobile Trommel Screen
Application:	Gold Sieving
Power:	4kw
Working Speed:	18rpm
Capacity:	3-5TPH
Other Name:	Trommel Drum Screener

Product Description

Gold Sieving Mobile Trommel Screen Sand Trommel Drum Screener

Working principle of Mobile Trommel Screen

Mobile Trommel Screen consists of five parts as drum, frame, hopper, reducer and motor. After the broken stone into the drum, on the one hand, materials being screened along with the rotation of drum, on the other hand, the bigger materials flow forward along the direction of slope and be separated by the screen with different number of meshes. The different materials fall into different hopper and then be sent to different finished product stacks by manpower or belt conveyor.

Mobile Trommel Screen Introduction

The trommel screening machine is a common equipment in the production of compound fertilizer. It is mainly used for the separation of finished products and returned materials. It can also realize the classification of finished products, so that the finished products can be evenly classified.

Our Mobile Trommel Screen can solve the issues such as blockage of the screening machine, low efficiency, wet materials, and high energy consumption. Cage trommel screening machine, because of its unique structural characteristics, completely and effectively solves the shortcomings of other types of screening equipment, and is the first choice for fertilizer production.

Mobile Trommel Screen Parameters

model	Power kw	Working speed rpm	Capacity T/H
GS1X3	3	21	2-3
GS1.2X4	4	18	3-5
GS1.5X6	5.5	16	6-10
GS1.8X7	11	13	12-15
GS2.0X8	15	12	15-20

Pictures

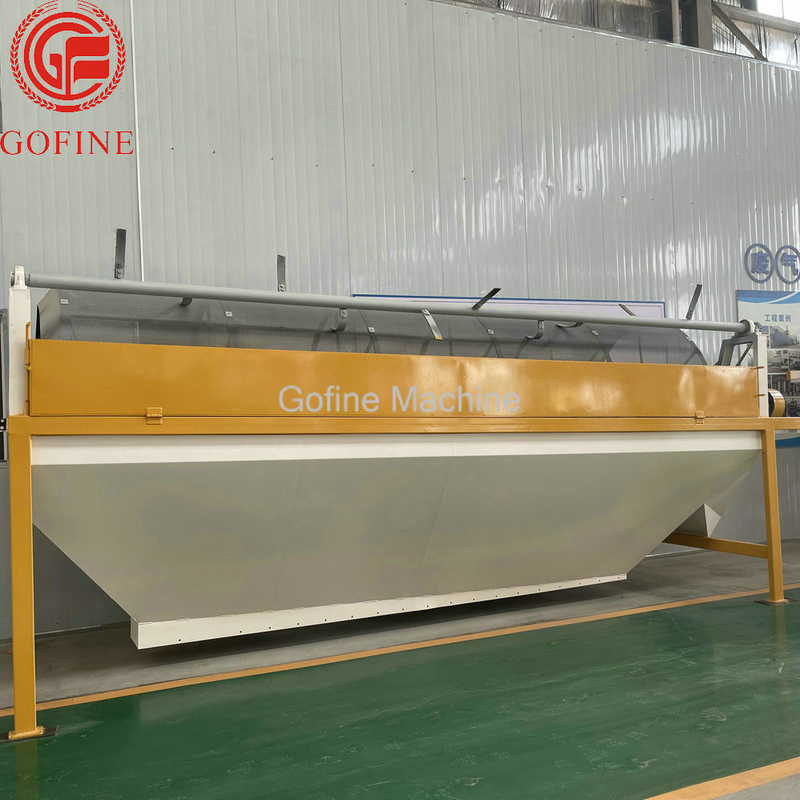

Gold Sieving Mobile Trommel Screen Sand Trommel Drum Screener 0

Gold Sieving Mobile Trommel Screen Sand Trommel Drum Screener 1

About Us

Zhengzhou Gofine Machine Equipment Co., Ltd. located in Zhengzhou West Development Zone, is a large-scale fertilizer equipment supplier integrating the scientific research, production, sales, import and export services since 1987. GOFINE takes "Quality First, Customers Supreme" as its tenet,"Treat customers with honesty, create business with integrity" has been deeply rooted in the hearts of every GOFINE person. GOFINE are willing to cooperated with all the new and cooperated customers to create a glorious future together!
Warmly welcome the customers from all over the world to discuss and build our business relationships!
